Description

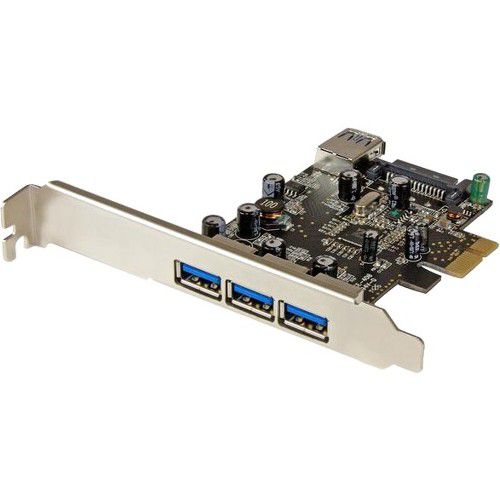

Add 4 USB 3.0 ports to your desktop computer through a PCI Express expansion slot. The PEXUSB3S4 4-Port PCI Express SuperSpeed USB 3.0 Card (with SATA Power) adds 3 external USB 3.0 ports and an internal USB 3.0 port to any PCI Express-enabled computer system. With SuperSpeed USB 3.0, you can reach data transfer speeds up to 5 Gbps, while still being backward compatible with existing USB 2.0 devices at 480Mbps.Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers.With a built-in SATA power connector, each USB port can provide up to 900mA of power to USB 3.0 devices (500mA for USB 2.0) by connecting to your computer power supply. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.UASP is supported in Windows 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
From the Manufacturer|
SuperSpeed USB (USB 3.1 Gen 1)
-
SuperSpeed USB delivers effortless audio/video streaming, music and photos to your home, office, car, and anywhere in between. SuperSpeed USB transfers data up to 5Gbps, up to 10X faster than Hi-Speed USB. SuperSpeed USB works with all USB products. It’s backward compatible with USB 2.0.
USB 3.1 Specification
The USB 3.1 specification includes definitions for both 5Gbps (Gen 1) and 10Gbps (Gen 2) data rates:
- USB 3.1 Gen 1 – SuperSpeed USB (Products signal at 5Gbps)
- USB 3.1 Gen 2 – SuperSpeed USB 10Gbps (products signal at 10Gbps)
Note: The terms USB 3.1 Gen 1 and USB 3.0 are synonymous
-
What the Logos Mean to You
To use the SuperSpeed USB logo and icons, products must pass USB-IF certification testing to ensure they are built to meet the USB specifications and interoperate with other USB devices. This means you can be confident that Certified USB products will work with other Certified USB products. This content is being provided for educational purposes only and does not imply that the associated product has been certified. To confirm if a device has been certified, visit the www.usb.org website or look for the Certified SuperSpeed USB logo on the product or product packaging.
